    12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width

    Ask Lasest Price
    Brand Name : JIMA
    Model Number : EDCU-HC
    Certification : SGS, ISO,Reach, RoHS
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Ton per month
    Delivery Time : 5-15 days
    • Product Details
    • Company Profile

    12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width


    12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width


    Company Information

    Our products have found their applications in CCL, PCB as well as Lithium-ion battery industries extensively, commanding more than 30% of domestic market share of ED copper foils used in Li-ion battery field.

    Both our service and quality are leading the industry and serve as the benchmark among the renowned brands domestically.


    Clean energy is more and more popular in the world,and it is support by goberment in many countries,copper foil is a main part in the battery manufacture. high quality copper foil will be a rising tendency.


    Product Description

    Lithium-ion battery copper foil have three types, doulbe shine/matte sides, single matte side,the single matte side is more popular, as the technology development, doulbe shine becomes more and more welcome.


    More Detail

    Type12 um double matte side copper foil
    Thickness Range5 um ~12um
    Width Range100-1380 mm
    StandardIPC-4562A,IPC-TM-650
    Tensile Strength100-105 g/m2
    PerformanceThe symmetrical structure of both sides
    The metal density nearing the copper theoretical density
    Very low surface profile, high elongation and tensile strength
    ApplicationBe used for the Li-ion battery cathode carrier and current collector.
    XEV: hybrid-electric vehicle.(HEV)
    Parallel hybrid electric vehicle(PHEV)
    Electric vehicle(EV)
    Li-ion battery cathode carrier and current collector

    Features:

    1. Eco-friendly products and processes.

    2. Stable properties suitable for high capacity rechargeable battery


    MTC of electrolytic ED copper foil lithium battery

    ClassificationUnitRequirementTest Method
    Foil Designation/IPC-4562A
    Nominal thickness/6um7um8um9/10um12um15um20umIPC-4562A
    Area Weightg/㎡54±163±1.2572±1.589±1.8107±2.2133±2.8178±3.6

    IPC-TM-650

    2.2.12.2

    Purity≥99.9

    IPC-TM-650

    2.3.15

    Foil ProfileShiny side (Ra)um0.1-0.4

    IPC-TM-650

    2.3.17

    Matte side(Rz)um0.8-2.0
    Tensile StrengthR.T.(23℃)Mpa>280

    IPC-TM-650

    2.3.18

    H.T.(180℃)>200
    ElongationR.T.(23℃)>5

    IPC-TM-650

    2.3.18

    H.T.(180℃)>3
    Pinholes&porosityNumberNo

    IPC-TM-650

    2.1.2

    Anti-oxidizationR.T.(23℃)day90/
    H.T.(160℃)Minutes15/

    6.Max Width,1380(±1)mm,May according to the customer request tailor.


    FAQ:
    Q1: What's your Delivery Lead time ?


    A: The specific delivery time depends on the items and the quantity of your order.The common : 5-15days


    Q2: What's your minimum order quantity?


    A: The MOQ is 100 kg.


    Q3: What's your guarantee?


    A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.


    ​Q4: can you provide Mill Test Certificate

    ​A:Yes.we can

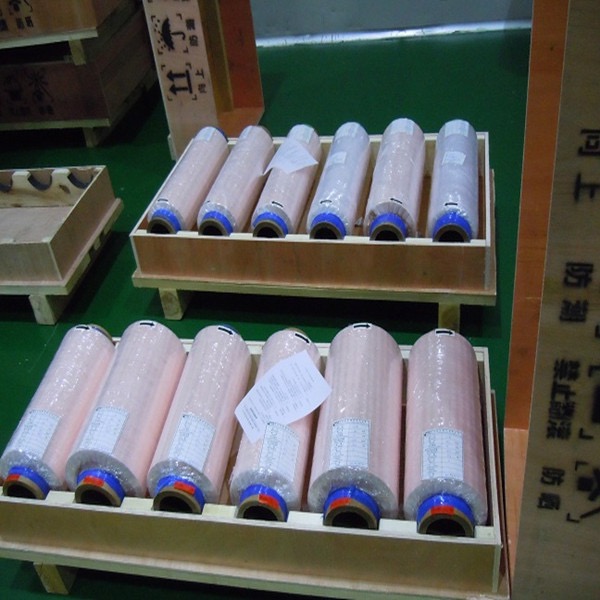

    Lithium Ion Battery Copper Foil Photos
