5oz 6oz Shielding ED Copper Foil 175um 210um Width For MRI Room
Description:
1. Mainly used for MRI room. shielding of electronic products,such
as transformer,cable,mobile phone, computer,mechanical treatment
,aerospace,war industry.
2. For MRI room: 2oz 3oz 5oz 6oz are very hot sale spec.
3. 1320mm/1370mm/1290mm ／1380mm width that's popular in the MRI
room
4. Roll ID: 76 mm ,152mm
5, With perfect performance : > With moisture resistance>
with cthermal resistance > with thermal conductivity and uv
resistance
Shielded ED Copper Foil Properties
| Quality Items | General Technical Terms |
2oz (70um) | 3oz (105um) | 4oz (140um) | 5oz (175um) | 6oz (210um) |
Area Weight g/m2 | 585±25 | 915±45 | 1220±60 | 1525±75 | 1830±90 |
Tensile Strength kg/mm2 | Room Temperature | ≥25.0 |
Elongation % | Room Temperature | ≥5.0 |
Leakage Points points/m2 | No |
Quality of electrical resistivity Ω·g /m2 | ≤0.162 |
Copper Foil Shielding Features
1. Lightweight (compared with other shielding materials)
2. Copper with 1320mm width or wider , can be more easy to install,
especially for roofing, wall and floor.
3. Can be used with either a monolithic RF Floor (moisture
resistance) or a modular RF Floor.
4. Copper Serves as an eddy current shield for EMI Protection.
5.RF shielding for MRI rooms is necessary to prevent RF noise from
entering into the MRI scanner and distorting the image. The three
main types of shielding used for MRIs are copper, steel, and
aluminum. Copper is generally considered the best shielding for MRI
rooms.
Our Services
1. can provide sample for testing,
2. can cutting width as request
3. can provide small quanity
4. can packed as request
5. any third inspection is ok .
Copper Foil Producing Process:

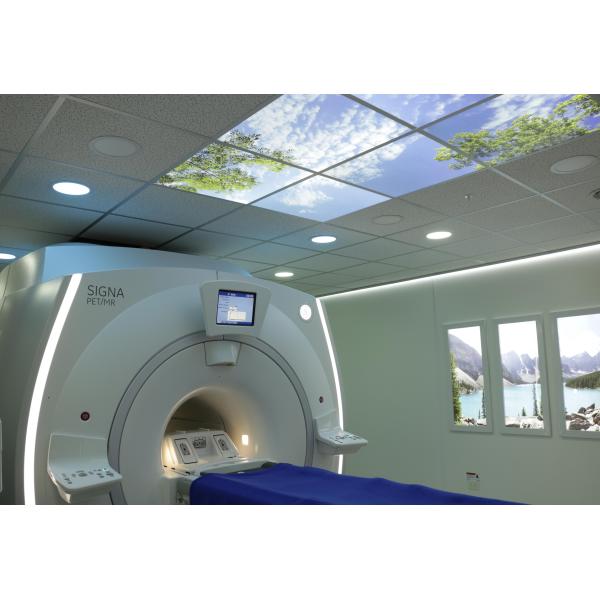

Copper Foil used for MRI Room application Photos:
